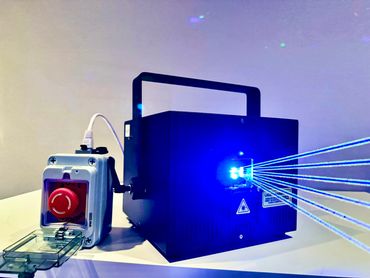

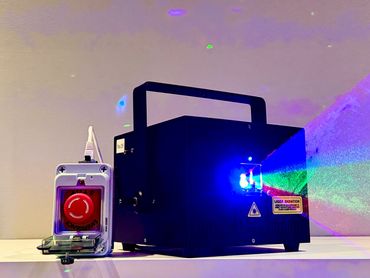

VividBox™ RGB 6 - Analog Laser Light Show and graphics projector

---

International Safety, Electrical, FDA and CDRH Certifications:

TUV: 154102761_P+T

ISO: ISO9001:2015

IEC: 60598-2-17

C-TICK: Pending

CE: JHC120309201S

RoHS: TST2019052712-3RC

FDA/CDRH Variance: FDA-2021-V-1236

Accession Number: 21A0680

UL Approval: E479306

Laser Specifications:

Laser Class: Class 4 Laser (445-638nm)

Source: All diodes are Direct Injection (Pure Diode Semiconductor) sources, and do not require warm up time.

Beam Divergence: 1.0mRad

Modulation: 50kHz Linear Analog driver

Peak optical output power per laser projector: 7.3W

Guaranteed laser output at aperture: 6.25W

Red: Mitsubishi 638nm 1800mW

Green: Nichia 525nm 1100mW

Blue: Sharp 450nm 3100mW

Beam Diameter: 4.5mm x 4.5mm

Working Mode: CW (continuous wave laser sources)

Guaranteed Diode Lifetime: 50,000 Hours

Control Protocols: ILDA, FB4, FB3, Master/Slave, DMX, Auto, Sound Active, Beyond, QuickShow, etc.

X and Y image size are manually adjustable via rear panel potentiometers.

As a general rule: the smaller the mRad (the smaller the divergence) the brighter the laser beam can travel over a long distance.

Complete and updated specs:

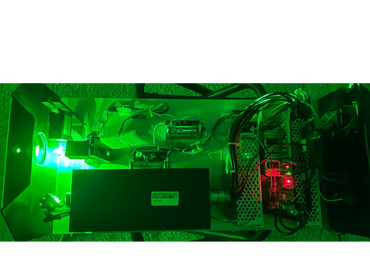

This is the brightest laser projector in our arsenal. It features a 3W (3000mW) 531nm pure green lab grade laser source and has a Greek-made EyeMagic scanning system installed.

This system was built from scratch by Clive Davie at Laser Electronics Ltd. in Lincolnshire, United Kingdom as a prototype for Cambridge Lasers Laboratories in Fremont, CA.

It's fully analog and all parameters are controlled via ILDA DB25 connection. There is no DMX, sound active or auto modes.

The mounting bracket is held in by 4x 5/16" hex  bolts, and allows for a tilt range of 70º.

This projector can be brought into FDA compliance, by adding the necessary features such as an E-stop with manual restart and emission delay, emission indicator LED above the aperture, mechanical shutter system, scan-fail safety, and a new FDA laser product report with a diagram of the internals with the safety features specified above. Can assist with the compliance process.

DB25 pin configuration available upon request.

Comes in a Pelican Air 1615 case for safe transport.

Technical Specifications:

Diode: 3W DPSS (Diode Pumped Solid State) Nd:YV04 531nm green laser

Manufacturer: Laser Electronics Ltd. - Lincolnshire, England

Output Wavelength: 532 ± 1nm

Output Power: 3W, pulsed up to 6W

Spatial Mode: TEM00

Operating Mode: CW or Analog Modulation

Modulation:  0~10khz  modulation

Beam Diameter(1/e2):  near 3.0 mm

Beam Divergence (Full Angle): <0.25 mRad

Beam Height: Near 28mm

Power Stability:  <5% per 2 hrs

Temperature Stabilizing: TEC

Warm Up Time: Less than 5 minutes

Optimum Operating Temperature: 20~30℃

Storage Temperature: 10~50℃

MTTF (mean time to failure): 10,000 hrs

Scanning System: EyeMagic EMS-4000 Galvanometer Scanners

Mirror Size: 6.5mm each

Galvo Amplifier Drivers: EMA-1200

Scanning Speed: 40K (40,000 points per second) at an 8º beam angle

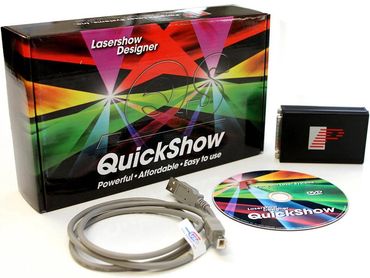

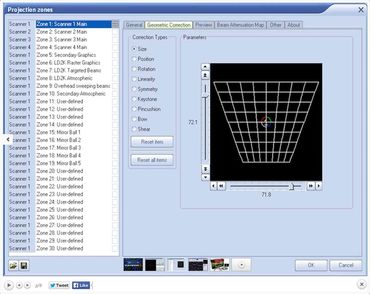

The Pangolin FB3QS Hardware with Quick Show Software is a complete laser control system including both the Quick Show software and FB3QS hardware. Whether you're a new to lasers or a seasoned professional, you can get amazing results in just minutes using Quick Show. The software is packed with powerful features so that you can create both “live” and pre-programmed laser shows faster and easier than ever before. And our innovative Quick Tools allow you to create custom laser beam effects, graphics, text, animations, abstracts, and laser logos, with ease. We also include nearly 2,000 pre-programed laser cues, and hundreds of beautiful laser shows, absolutely Free.

Laser Show Control, For Everyone!

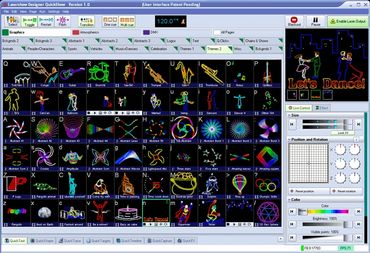

Powerful, Affordable, and Easy to Use Quick Show is the world’s leading laser show control software and has helped thousands of clients just like you, create stunning laser shows and displays. This FREE program provides all the tools you need to create beautiful laser content in just seconds (laser beams effects, graphics, logos and text). And you don’t have to worry about complex programming, to bring your laser visions to life. No matter if you are new to lasers or a seasoned professional, Quick Show brings your artistic style to life, in beautiful laser light.

Beautiful Content, At Your Fingertips

If you enjoy simplicity and don’t want to be bothered with programming content, you will love Quick Show. The software includes nearly 2,000 pieces of stock laser clipart, and hundreds of FREE laser shows. Simply click the cue or show you want to display, and you are up and running in seconds.

Pangolin Cloud…

Like iTunes For Laser Shows

The innovative new Pangolin cloud provides you with a nearly infinite stream of fresh content to choose from. All easily downloaded directly within the software. Think of having your very own for laser shows, cues and content, built right inside the program. And as an artist, you can also create your own profile, and design your own laser shows and content to share or sell with others. (iTunes is a registered trademark of Apple Inc.).

Quick Tools, For Custom Laser Creations

As you grow with Quick Show, you may want to create your own laser content (such as laser beam effects, text, graphics, or laser logos). The easy to use Quick Tools inside the software allow you to design this content, and bring it to life in laser. There are eight different Quick Tools, as noted below.

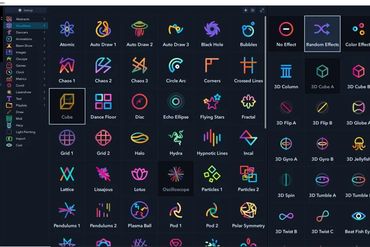

LaserOS is a cross-platform laser control software that is compatible with Android, PC and Mac devices. LaserOS boasts a user-friendly interface that makes laser operation accessible to novices and professionals alike. This is a free download that comes with LaserCube and LaserDock.

• Vast Array of pre-made content that makes designing laser shows a breeze
  • Abstracts, Visualizers, Dancers, Animations, Beam Shows, Images and more
• Dozens of 3D and color effects to impress your audience
• Unique features for limitless creativity
  • Games, Clock, Custom Text and Drawing, Midi, Harp, Light Painting and more
• Instant laser mapping
• Compatible with other products to enhance your laser shows
  • Radiator, Maxwell Synth, Modulaser, LaserShow Xpress and more.
• Freely available API for programmers

Welcome to GearBulb Technologies®! A new brand on behalf of GSEI!

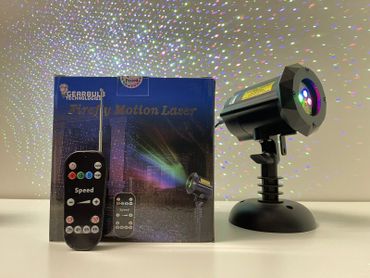

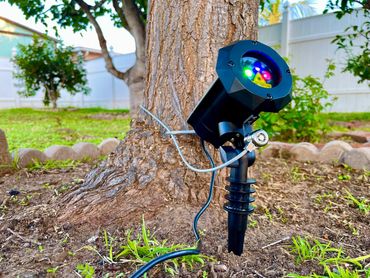

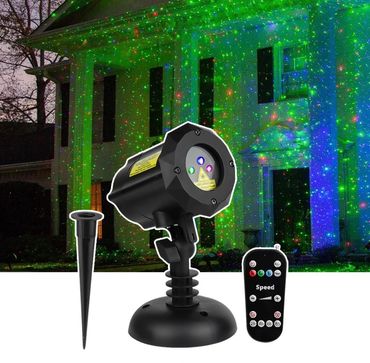

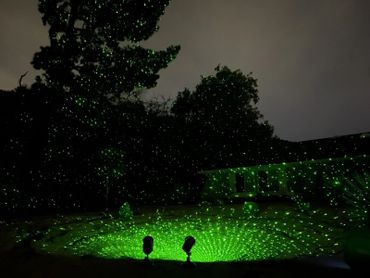

Spice up your home or outdoor living space for any occasion using the new Firefly Motion Laser Light Show Projector from GearBulb Technologies®!

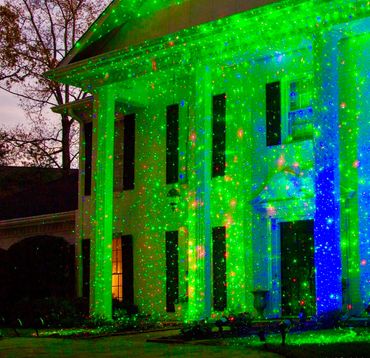

This laser projector projects thousands of RGB (red, green and blue) moving stars and easily covers 2500 sqaure feet or a 40 x 40 foot area!

Energy efficiency played a large factor when it came to designing and testing the projector.

Compared to traditional Christmas string rope lighting, this decorative light fixture draws 15W 0.5A max power consumption on 110-120v 60Hz.

Laser power specifications:

100mw 650nm Red

50mw 532nm Green

100mw 450nm Blue

250mw total output

There are no tools required for installation and setup! The projector is as simple as plug and play!

Using the projector's included RF (radio frequency) remote control, (proven tested) you have the ability to control the unit up to 70 feet away! This was tested by us at GearBulb Technologies® and the signal will also travel through walls and other obstacles compared to standard IR infrared remotes, which do not have a long-range signal transmission.

A single remote allows the end user to have full control over multiple projectors at a distance, even while indoors!  The remote controls all color mixing changing functions, control over single colors, flashing, strobe effects, rotation speed of the moving stars, power on/off and timer settings.

The built-in timer function has 4 settings. 2 hours on, 4 hours on, 6 hours on and 8 hours on before the projector automatically powers off. The end user can also disable the timer function via the clock remote on the remote.

The fixture is IP67 rated for wet outdoor locations. The all-metal non-corrosive body and connections of the projector are completely sealed and waterproof meaning the fixture can be submerged underwater (such as a fountain or pond) and all functions will work!

Also included is a cable lock with key as a theft deterrent. Easily secure the laser projector to a tree, mailbox post or any fixed object and secure your investment.

GearBulb Technologies® laser lights also feature an extra-long power cord with a length of 19.7 feet.

Safety is a main priority for the end user. All our projectors meet USA and international safety standards including UL, CE, RoHS, FDA CFR 1040.10, IEC and FCC. Approvals and documentation available upon request. Laser stars are less than 1mw at aperture.

GearBulb Technolgies® includes a 1 Year Manufacturer's Warranty on all our products from date of purchase. Customer satisfaction guarantee! Each projector underwent quality control and passed.

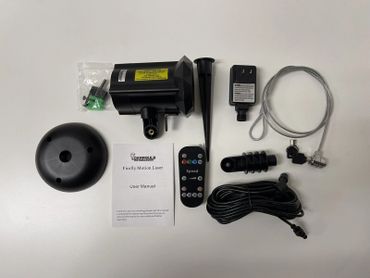

Box contents:

 1x RGB Firefly Motion Laser Stars Projector

1x User Manual

1x Round Screw-on Indoor Floor/Ceiling Base

1x Screw-on Outdoor Yard Stake

1x UL 100-120V UL Approved AC to DC 12V Adapter

3x Ceiling Wall Mount Screws with Drywall Nuts

1x Adjustable Base Thumbscrew

1x Fixture Security Cable Lock with 2 Keys

1x Long-Range RF Remote Control

1x Adjustable Fixture to Base Mount

1x 12V 19.7' Extra-Long Power Cord
